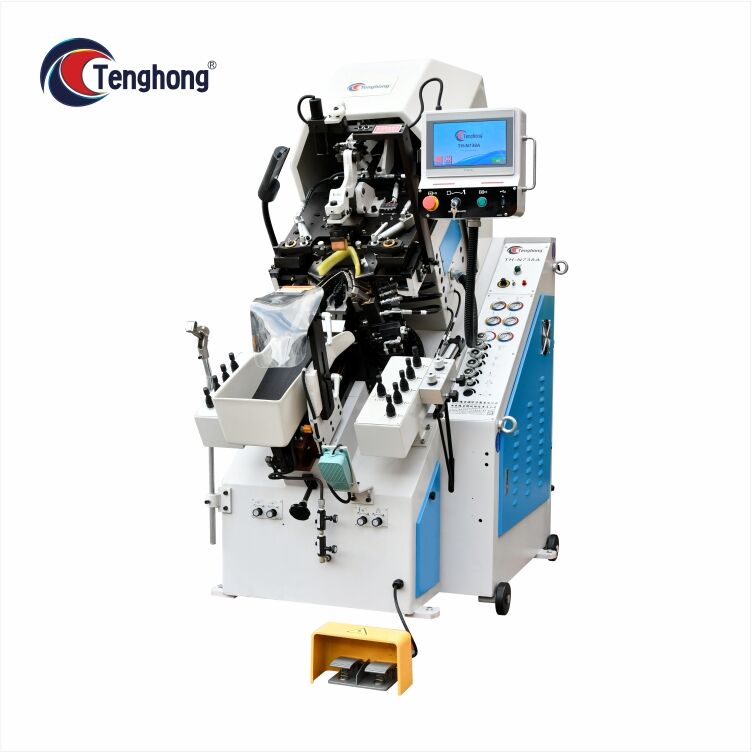

TH-N738A 9 Pincers Computer Memory Control Automatic Toe Lasting Machine

TH-738A FEATURES:

●This machine uses an encoder to control the bonding and has a shoe type memory function.
●The first pincer and the second pincer are the newly designed high speed replacement structures, every pincer can complete reloading in five seconds quickly changing the pincer without using tools.
● The rising stop point and the drafting stop point of the newly designed last supporter are adjusted speedily and externally, accompanied by the digitized position indicator, with a precision up to 0.1mm, which is the most accurate repeatability.
●There are two speed-changing modes to choose when the last supporter is rising, it can improve the efficiency of production, especially for the fragile vamps.
●The machine can be installed additionally with the auxiliary wiper and automatic cementing mechanism according needs.

Model:TH-738A                     Pincers:9

Power:2HP                         Heating Power:1kw

Oil Pressure:50kg/cm²                Productivity:1600 pairs/8hour

Oil Filling:115liters                   N.W.:1165kg

Voltage:380V

Dimension:1750(L)*980(W)*1950(H)mm

Packing Size:1860(L)*1030(W)*2160(H)mm
