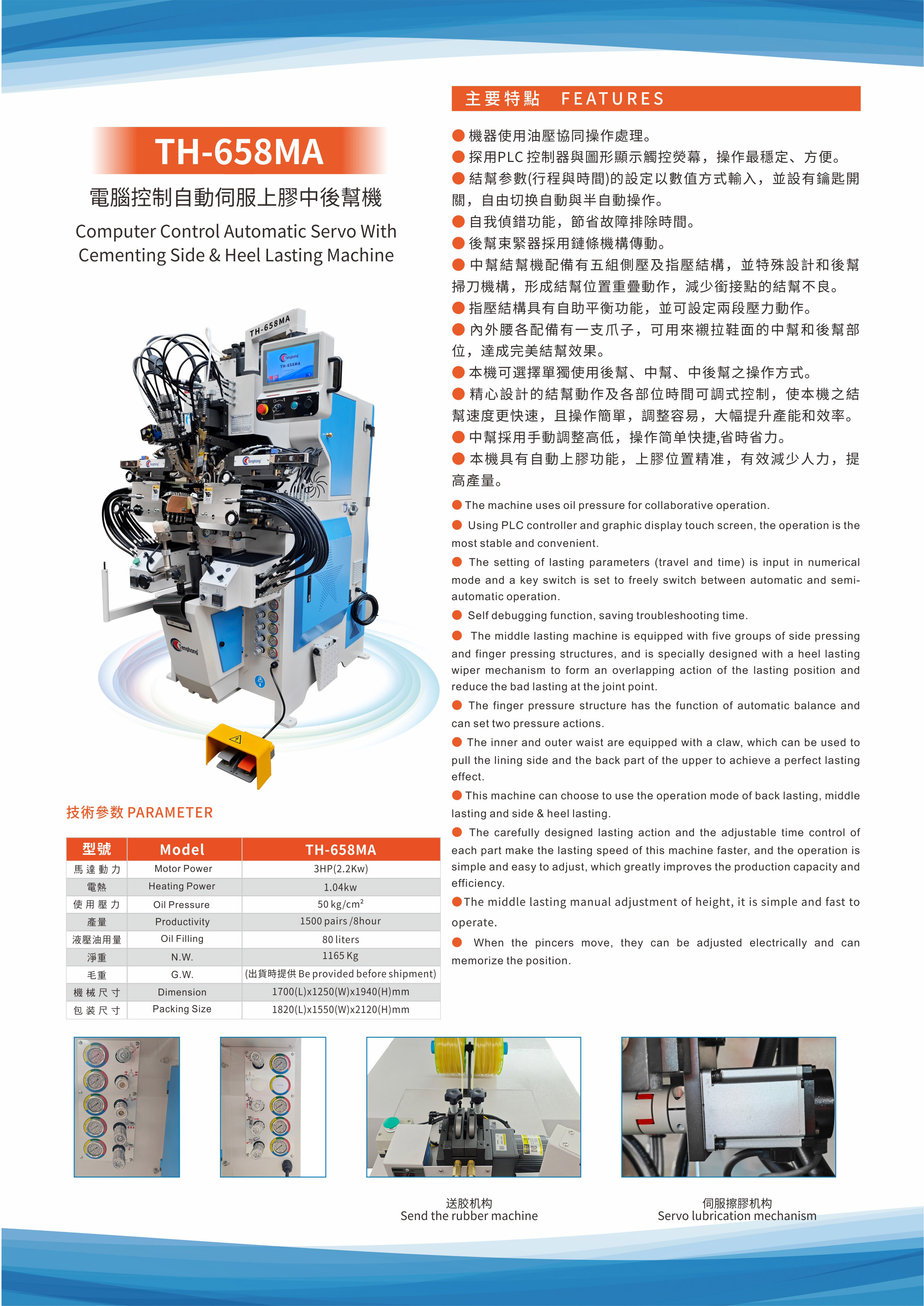

TH-658MA Automatic Cementing Side & Heel Seat Lasting Machine

Computerized automatic cementing side & heel seat lasting machine

The features:

• Using PLC controller and graphic display touch screen, more stable and convenient.
• It can switch between automatic and semi-automatic operation
• It has self-diagnosis function, saving troubleshooting time.
• The finger pressure structure has the function of automatic balance and can set two section pressure actions
• The machine can choose to use the operation mode of back lasting, middle lasting and side and heel lasting.
• The middle lasting manual adjustment of height,, it is simple and fast to operate.
• This machine has automatic gluing function, precise gluing position.

Model: TH-658MA

Power:2.2kw

Net weight: 1165kg

Gross weight: 1260kg

Dimension: 170*125*194cm

Packing size: 182*155*212cm
