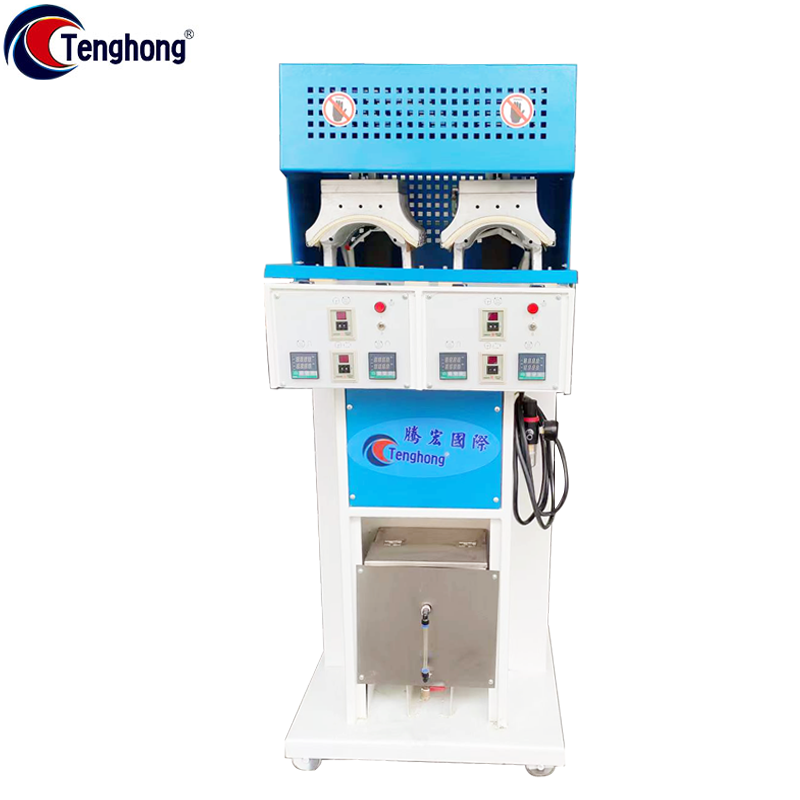

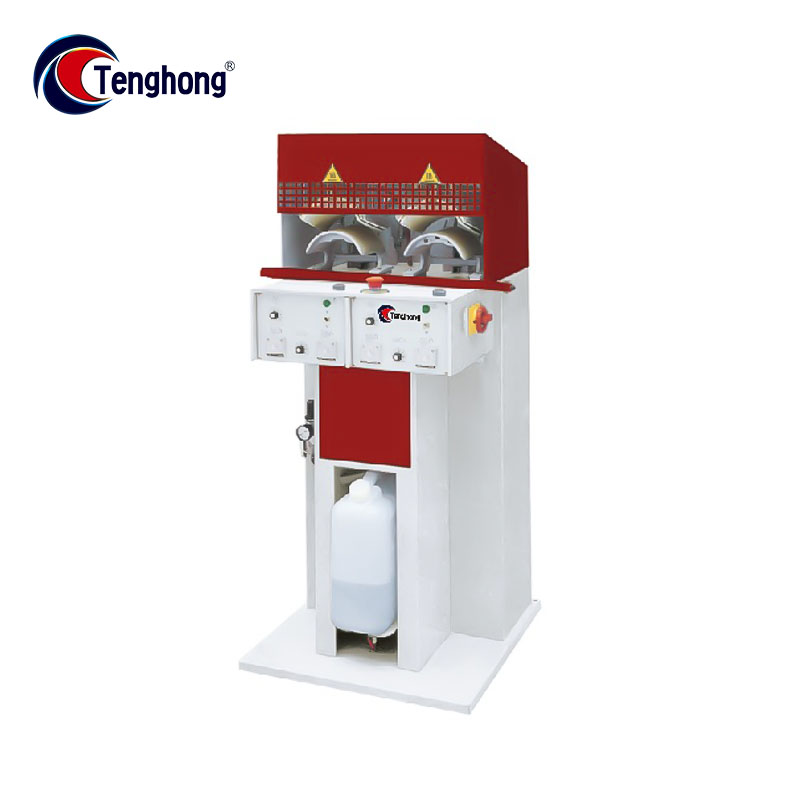

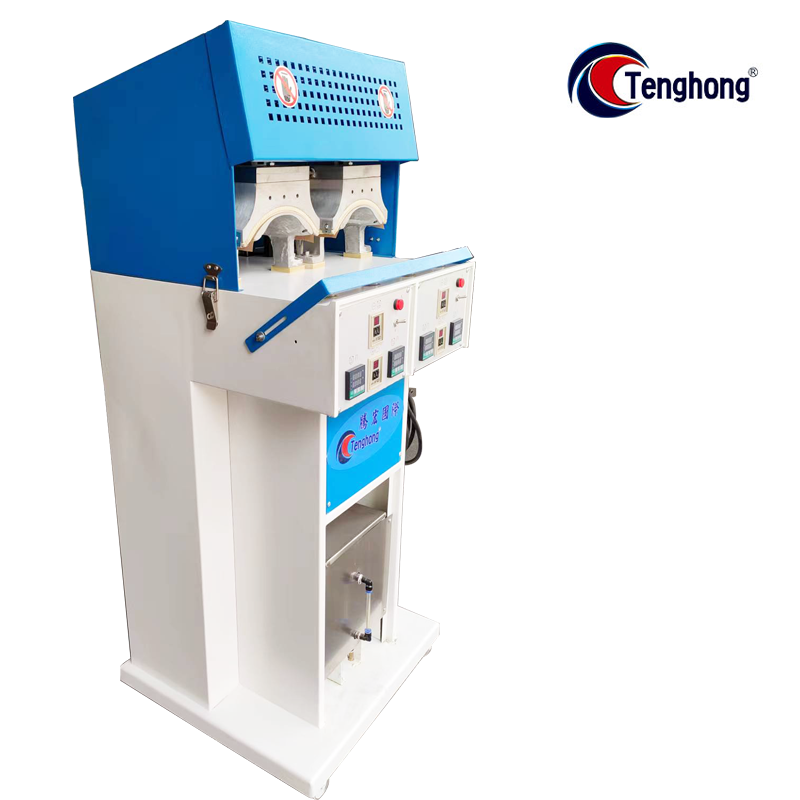

TH-503 Toe Upper Steaming Machine

Features:

Machine for steaming the top-cap and the side of the upper and reactivate the toe-cap before lasting
An important feature of this machine is the steam which is produced instantly by a direct injection of water in the mould.

Before this machine is used in the knotting machine, the toe cap part made of leather is covered with thermal film, which is heated and steamed by this machine. Wet it to soften it for binding.

Temperature - the normal temperature is 100-120 degrees, the time can be adjusted according to the material, and the time can be adjusted according to the leather. About 10-20 seconds.

Voltage:                  220V

Power:                  4.2KW

Air supply                6kg/cm2

Machine Dimensions       67×86×125cm

Package Dimensions        150*102*1900mm

N.W./G.W.                 76 / 99KG

Output                   2000pairs/8hours
